3 Cups Wind Speed Sensor Detector Anemometer Cup, Ultrasonic Weather, High Accuracy DC9 to 30V - Strong Pressure Resistance, Versatile Wiring, Ideal for Outdoor

Item Type: Wind Speed SensorMaterial: ABSSize: Approx. 158 x 180 x 70mm / 6.2 x 7.1 x 2.8inPower Supply Voltage: DC9-30VSignal Output: 0-5VMeasurement Range: Wind speed 0-45m/sExtension Line Length: 0.8mAccuracy: ±(0.5+0.02V)m/s (V represents real time wind speed value)Resolution: 0.1m/sStarting Wind Speed: 0.8m/sMaximum Power Consumption: 0.48WLoad Capacity: DC12V power supply, current output impedance 350ΩVoltage and Impedance: DC24V power supply, current output impedance: 900Ω, voltage output impedance 1KΩOperating Environment: Temperature -35℃ to 60℃, humidity 100%RH without condensationProtection Level: IP64Widely Used: Greenhouses, , weather stations, ships, docks, aquaculture, advertising gate bars, meteorology, marine, environmental, airports, ports, laboratories, industrial and agricultural, and transportation environments for wind speed measurement.Weight: Approx. 272.00g / 9.59ozCalculation formula:0-5V: F=V/5 A+BF: Represents the wind speed value, m/s;V: Sensor output voltage value, V;A: Sensor range width (upper range minus lower range);B: The minimum range value of the sensor (lower range limit);Wiring method (wire sequence is respectively):Red line: power supply positive (output signal voltage)Black line: power supply negative (output signal voltage)Yellow line: signal (output signal voltage)Distribution diameter: Approx. 63mm / 2.48inInstallation diameter: Approx. 3.2mm / 0.13inAviation plug diameter: 15mm/0.59in (it is recommended to reserve 25mm for wiring, wire first, and then install and fix the sensor)Troubleshooting:1. The wind blades do not rotate properly and have a large lag. Due to long term use, there may be foreign objects or jamming inside the bearing. Please send the sensor back to the company for processing;2. The display value of the analog signal instrument is incorrect.

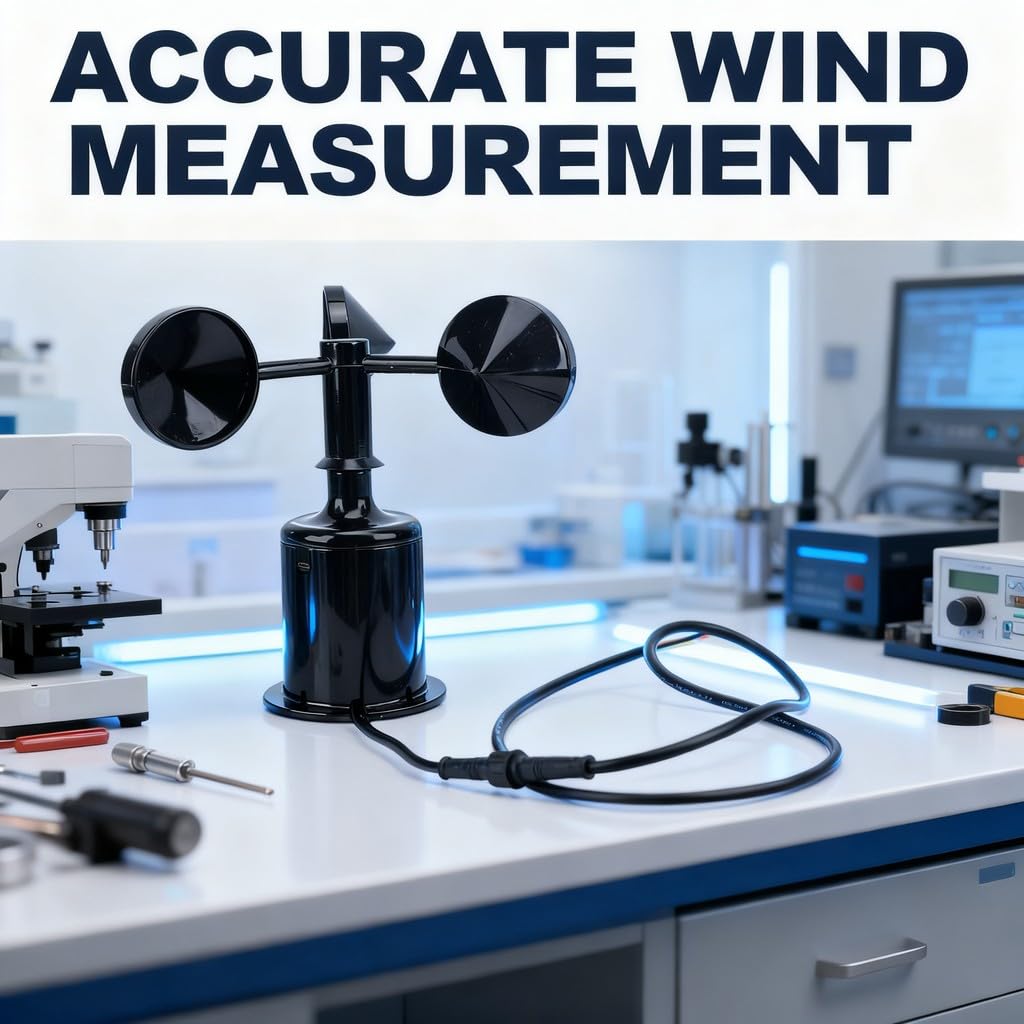

• [High Precision Measurement]: Equipped with sensitive 3 cup design, this wind speed sensor provides accurate wind speed detection from 0 to 45m/s with a resolution of 0.1m/s, ensuring reliable data for meteorology and industrial use.
• [Durable ABS Construction]: Crafted with high strength ABS material, the sensor cups resist damage from environmental stress, enabling long-lasting performance and stable operation in harsh weather conditions.
• [Weatherproof and ]: Featuring IP64 protection and robust interference resistance, this device maintains accurate readings even during storms and high humidity environments.
• [Flexible Installation]: Designed with both bottom and side wiring options plus a 0.8 meter extendable cable, the sensor adapts to various setups such as greenhouses, ports, and weather stations for easy integration.
• [Wide Operating Range]: With voltage compatibility of DC9-30V and tolerance for temperatures from -35℃ to 60℃, this wind sensor is for versatile outdoor and industrial applications requiring strong pressure resistance.
