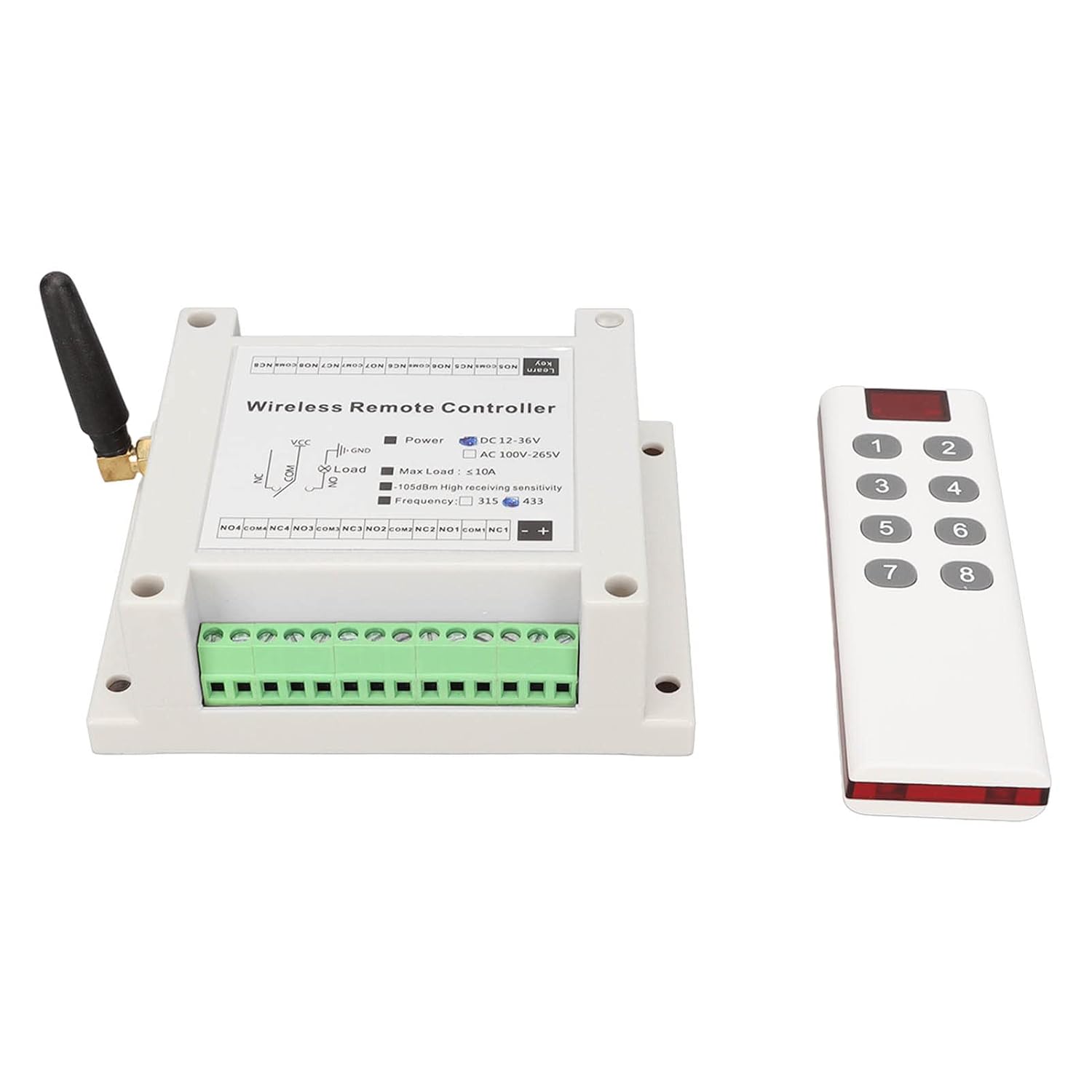

0A DC 12V 36V Relay Secure Remote Control Switch Relay Module for Motor Light Gate Door DIY Controller 433mhz 8 Channel Remote Control Relay Switch

1.CONTROL DC OR AC DEVICES: Relay can control DC or AC devices. The range of the hand held transmitter is within an open area of 100‑150m. Structure, interference radiation and interference field will reduce the range.Specification:Item Type: 8 Channel RelayMaterial: ABSWorking Voltage: DC12V-36VCurrent: Standby Less Than 10mAWorking Temperature: -40℃, 80℃Receiver Frequency: 433MHZReceiving Sensitivity: -105dBmCommunication Distance: Approx. 100-150m / 328.1-492.1ftMaximum Load: 10A Relay, Resistive Load Less Than 8A, Inductive Load Less Than 3ARemote Control Battery: 1 x 23A Battery (Not Included)Package List:1 x 8 Channel Relay1 x Remote ControlNote:1. Learning mode and steps1. Press the learning of the receiver, the buzzer keeps beeping to indicate the learning state.2. Press the Relative of the transmitter to learn the relative output mode, when the buzzer beeps Be Be Be 3 times to indicate successful learning, then press the transmitter to hear the sound of relay action. If you do not have any within 32 seconds, the receiver will automatically exit the learning state.2. Delete the memory information (the code must be cleared before learning different buttons)Press and hold the learning of the receiver, the buzzer will beep and emit Be Be Be Be (please don't wait for Be Be 6 sounds) and then release the to indicate the success of deleting the memory information.

• SCOPE OF APPLICATION: 8 channel relay can be used for industrial automation, agricultural automation and home automation, such as factories, houses, farms, ranches, vehicles, ships, marine operations, flying machines, live calls, etc.
• REMOTE CONTROL: 8 channel relay module can remotely control various devices such as remote control lights, sirens, locks, motors, fans, linear actuators, solenoid valves, security alarms, commercial signs, etc. For equipment on land and water.
• EASY INSTALLATION: 8 channel relay board is control and easy to install. RF can pass through wall, floors, doors or window. You can use two or more units in the same place, satisfy your various needs.
• STABLE PERFORMANCE: 8CH 10A relay features high confidentiality, stable performance, low power consumption, and can be jumpered or dipswitch coded. One or more transmitters can control one or more receivers at the same time.
• REMOTE CONTROL ON OR OFF: You can use the transmitter (remote control) to turn the receiver on or off from anywhere within a distance. The receiver only works with transmitters that use the same code.
